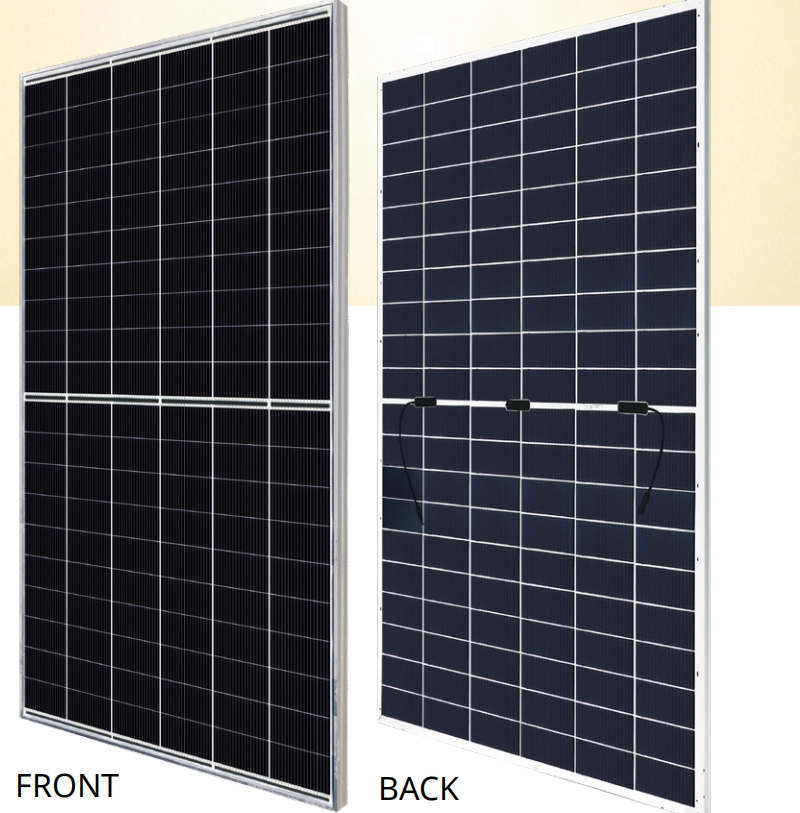

Ultra-High Conversion Rate
MONO PERC Cells with 21.7%+ Efficiency – Generate 30% More Energy Than Conventional Panels
All-Weather Resilience
Anti-Reflective Glass & IP68 Waterproof Design – Stable Output in Rain, Snow, or Extreme Heat (-40°C~85°C)
Compact & Easy Installation
Optimized 108-Cell Layout – Saves 15% Rooftop Space While Maximizing Energy Yield
25-Year Linear Power Warranty
Certified by TÜV & IEC – Backed by 15-Year Material Quality Guarantee
Key Highlights:
21.7% Max Module Efficiency
0~3% Power Tolerance
<2% First Year Power Degradation
0.45% Annual Degradation (Years 2-30)
Half-Cell Technology for Lower Operating Temperature
Mechanical Parameters
| Parameter | Specification |
|---|---|
| Cell Orientation | 144 (6×24) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm², +400mm/-200mm (±1400mm customizable) |
| Glass | Dual glass, 2.0-2.0mm heat strengthened |
| Frame | Anodized aluminum alloy |
| Weight | 31.8kg |
| Dimensions | 2278×1134×30mm |
| Packaging | 36pcs/pallet, 180pcs/20ft GP, 720pcs/40ft HC (576pcs for USA) |
Electrical Characteristics (STC & NOCT)
| Module Type | LRS-72HBD-540M | LRS-72HBD-545M | LRS-72HBD-550M | LRS-72HBD-555M | LRS-72HBD-560M |
|---|---|---|---|---|---|
| Testing Condition | STC / NOCT | STC / NOCT | STC / NOCT | STC / NOCT | STC / NOCT |
| Max Power (Pmax/W) | 540 / 403.6 | 545 / 407.4 | 550 / 411.1 | 555 / 414.8 | 560 / – |
| Open Circuit Voltage (Voc/V) | 49.50 / 46.54 | 49.65 / 46.68 | 49.80 / 48.82 | 49.95 / 46.97 | 50.10 / – |
| Short Circuit Current (Isc/A) | 13.85 / 11.17 | 13.92 / 11.23 | 13.99 / 11.29 | 14.05 / 11.34 | 14.10 / – |
| Voltage at Pmax (Vmp/V) | 41.65 / 38.86 | 41.80 / 39.00 | 41.95 / 39.14 | 42.10 / 39.28 | 42.25 / – |
| Current at Pmax (Imp/A) | 12.97 / 10.39 | 13.04 / 10.45 | 13.12 / 10.51 | 13.19 / 10.56 | 13.26 / – |
| Module Efficiency (%) | 20.9 | 21.1 | 21.3 | 21.5 | 21.7 |
Test uncertainty for Pmax: ±3%
Rear Side Power Gain (Reference: 550W Front)
| Pmax (W) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Power Gain |
|---|---|---|---|---|---|
| 578 | 49.80 | 14.68 | 41.95 | 13.77 | +5% |
| 605 | 49.80 | 15.38 | 41.95 | 14.43 | +10% |
| 633 | 49.90 | 16.08 | 42.05 | 15.08 | +15% |
| 660 | 49.90 | 16.78 | 42.05 | 15.74 | +20% |
| 688 | 49.90 | 17.48 | 42.05 | 16.39 | +25% |
Operating Parameters
Temperature Range: -40°C to +85°C
Power Output Tolerance: 0 to +3%
Voc/Isc Tolerance: ±3%
Max System Voltage: DC1500V (IEC/UL)
Max Series Fuse: 30A
Nominal Cell Temp: 45±2°C
Protection Class: Class II
Bifaciality: 70±5%
Fire Rating: UL Type 29 / IEC Class C
Mechanical Load & Environmental Tests
| Parameter | Specification |
|---|---|
| Front Static Load | 5400Pa |
| Rear Static Load | 2400Pa |
| Hail Test | 25mm hail @ 23m/s |
Temperature Coefficients (STC)
| Parameter | Coefficient |
|---|---|
| Isc Temp Coefficient | +0.050%/°C |
| Voc Temp Coefficient | -0.265%/°C |
| Pmax Temp Coefficient | -0.340%/°C |
Certifications & Compliance
IEC 61215, IEC 61730, UL 61730
ISO 9001:2015 (Quality Management)
ISO 14001:2015 (Environmental Management)
ISO 45001:2018 (Occupational Health & Safety)
IEC 62941 (Module Design Qualification)
