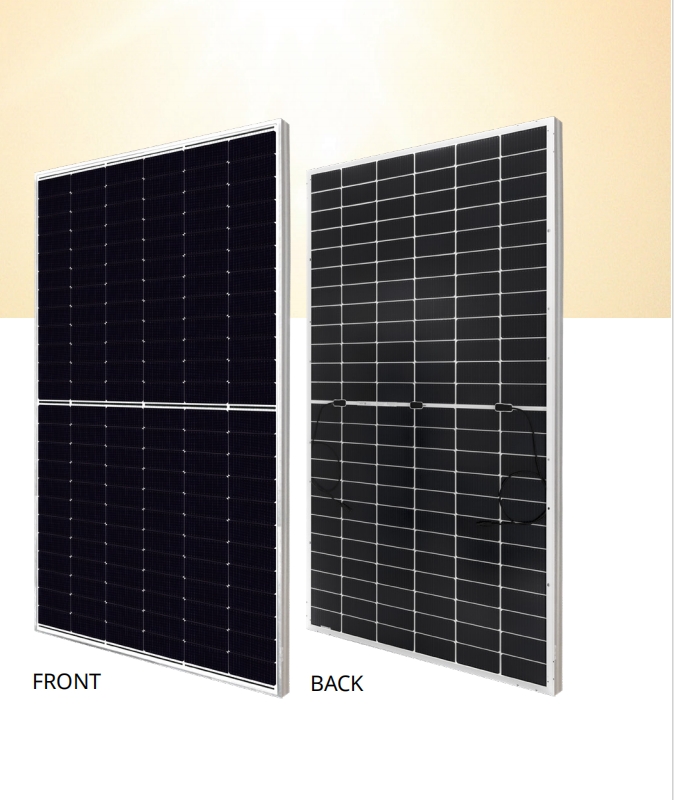

N-type Bifacial TOPCon Technology 565 W ~ 595 W
CS6W-565|570|575|580|585|590|595TB-AG
MORE POWER
- Module power up to 595 W
- Module efficiency up to 23.0%
- Up to 85% Power Bifaciality, more power from the back side
- Excellent anti-LeTID & anti-PID performance. Low power degradation, high energy yield
- Lower temperature coefficient (Pmax): -0.29%/°C, increases energy yield in hot climates
- Lower LCOE (Levelized Cost of Energy) & system cost

MORE RELIABLE
- Tested up to ice ball of 35 mm diameter according to IEC 61215 standard
- Minimizes micro-crack impacts
- Heavy snow load up to 5400 Pa, wind load up to 2400 Pa*
- 12 Enhanced Product Warranty on Materials and Workmanship*
- 30 Linear Power Performance Warranty*
- 1st year power degradation no more than 1%
- Subsequent annual power degradation no more than 0.4%
MANAGEMENT SYSTEM CERTIFICATES*
- ISO 9001:2015 / Quality management system
- ISO 14001:2015 / Standards for environmental management system
- ISO 45001:2018 / International standards for occupational health & safety
- IEC 62941:2019 / Photovoltaic module manufacturing quality system
PRODUCT CERTIFICATES*
- IEC 61215 / IEC 61730 / CE / INMETRO / MCS / UKCA / RETIE / CGC
- CEC listed (US California) / FSEC (US Florida)
- UL 61730 / IEC 61701 / IEC 62716 / IEC 60068-2-68
- UNI 9177 Reaction to Fire: Class 1 / Take-e-way
ENGINEERING DRAWING (mm)
- Rear View
- Frame Cross Section
- Mounting Hole
(Note: Detailed dimensions and diagrams are available in the original PDF and cannot be reproduced here in text form. Consider including an image or link to the engineering drawing on your website.)
ELECTRICAL DATA | STC*
Model | Nominal Max. Power (Pmax) | Opt. Operating Voltage (Vmp) | Opt. Operating Current (Imp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Module Efficiency |
---|---|---|---|---|---|---|
CS6W-565TB-AG | 565 W | 42.5 V | 13.30 A | 51.6 V | 13.75 A | 21.9% |
Bifacial Gain** 5% | 593 W | 42.5 V | 13.96 A | 51.6 V | 14.44 A | 23.0% |
Bifacial Gain** 10% | 622 W | 42.5 V | 14.63 A | 51.6 V | 15.13 A | 24.1% |
Bifacial Gain** 20% | 678 W | 42.5 V | 15.96 A | 51.6 V | 16.50 A | 26.3% |
CS6W-570TB-AG | 570 W | 42.7 V | 13.35 A | 51.8 V | 13.80 A | 22.1% |
Bifacial Gain** 5% | 599 W | 42.7 V | 14.02 A | 51.8 V | 14.49 A | 23.2% |
Bifacial Gain** 10% | 627 W | 42.7 V | 14.68 A | 51.8 V | 15.18 A | 24.3% |
Bifacial Gain** 20% | 684 W | 42.7 V | 16.01 A | 51.8 V | 16.56 A | 26.5% |
CS6W-575TB-AG | 575 W | 42.9 V | 13.40 A | 52.0 V | 13.85 A | 22.3% |
Bifacial Gain** 5% | 604 W | 42.9 V | 14.07 A | 52.0 V | 14.54 A | 23.4% |
Bifacial Gain** 10% | 633 W | 42.9 V | 14.74 A | 52.0 V | 15.24 A | 24.5% |
Bifacial Gain** 20% | 690 W | 42.9 V | 16.07 A | 52.0 V | 16.62 A | 26.7% |
CS6W-580TB-AG | 580 W | 43.1 V | 13.45 A | 52.2 V | 13.90 A | 22.5% |
Bifacial Gain** 5% | 609 W | 43.1 V | 14.12 A | 52.2 V | 14.60 A | 23.6% |
Bifacial Gain** 10% | 638 W | 43.1 V | 14.79 A | 52.2 V | 15.29 A | 24.7% |
Bifacial Gain** 20% | 696 W | 43.1 V | 16.13 A | 52.2 V | 16.68 A | 27.0% |
CS6W-585TB-AG | 585 W | 43.3 V | 13.50 A | 52.4 V | 13.95 A | 22.7% |
Bifacial Gain** 5% | 614 W | 43.3 V | 14.18 A | 52.4 V | 14.65 A | 23.8% |
Bifacial Gain** 10% | 644 W | 43.3 V | 14.85 A | 52.4 V | 15.35 A | 25.0% |
Bifacial Gain** 20% | 702 W | 43.3 V | 16.19 A | 52.4 V | 16.74 A | 27.2% |
CS6W-590TB-AG | 590 W | 43.5 V | 13.55 A | 52.6 V | 14.00 A | 22.9% |
Bifacial Gain** 5% | 620 W | 43.5 V | 14.24 A | 52.6 V | 14.70 A | 24.0% |
Bifacial Gain** 10% | 649 W | 43.5 V | 14.91 A | 52.6 V | 15.40 A | 25.2% |
Bifacial Gain** 20% | 708 W | 43.5 V | 16.25 A | 52.6 V | 16.80 A | 27.5% |
CS6W-595TB-AG | 595 W | 43.7 V | 13.60 A | 52.8 V | 14.05 A | 23.0% |
Bifacial Gain** 5% | 625 W | 43.7 V | 14.30 A | 52.8 V | 14.75 A | 24.2% |
Bifacial Gain** 10% | 655 W | 43.7 V | 14.97 A | 52.8 V | 15.46 A | 25.4% |
Bifacial Gain** 20% | 714 W | 43.7 V | 16.31 A | 52.8 V | 16.86 A | 27.7% |
Under Standard Test Conditions (STC) of irradiance of 1000 W/m², spectrum AM 1.5, and cell temperature of 25°C.
*Bifacial Gain: The additional gain from the back side compared to the power of the front side at the standard test condition. It depends on mounting (structure, height, tilt angle, etc.) and albedo of the ground.
