Hybrid Inverters Manufacturer an dSupplier
Hybrid Inverters Manufacturers & Suppliers
8.6KW hybrid inverters manufacturer

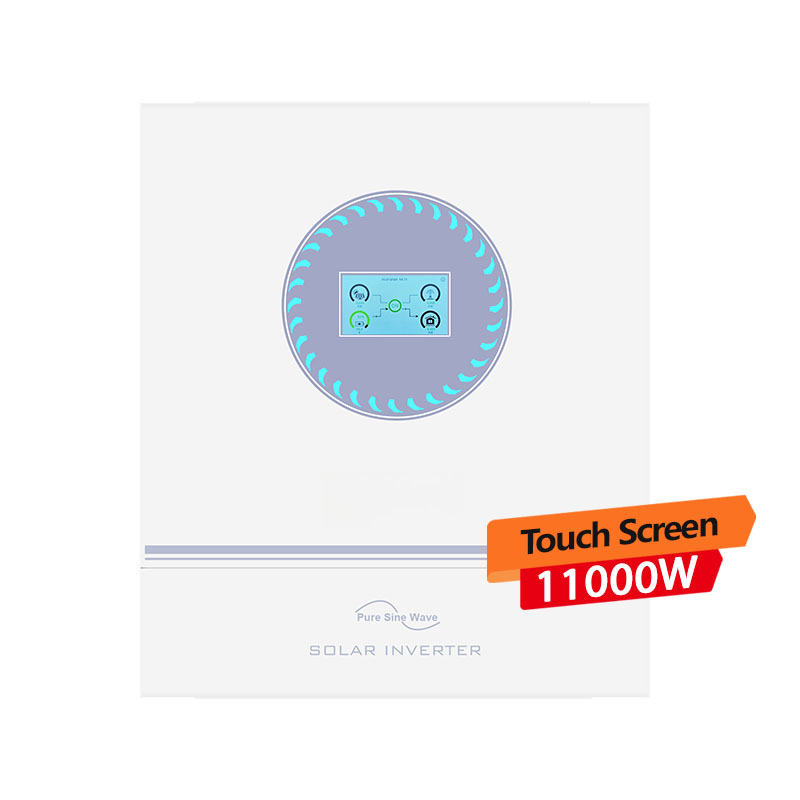

11KW hybrid-inverters factory
3KW hybrid-inverters factory

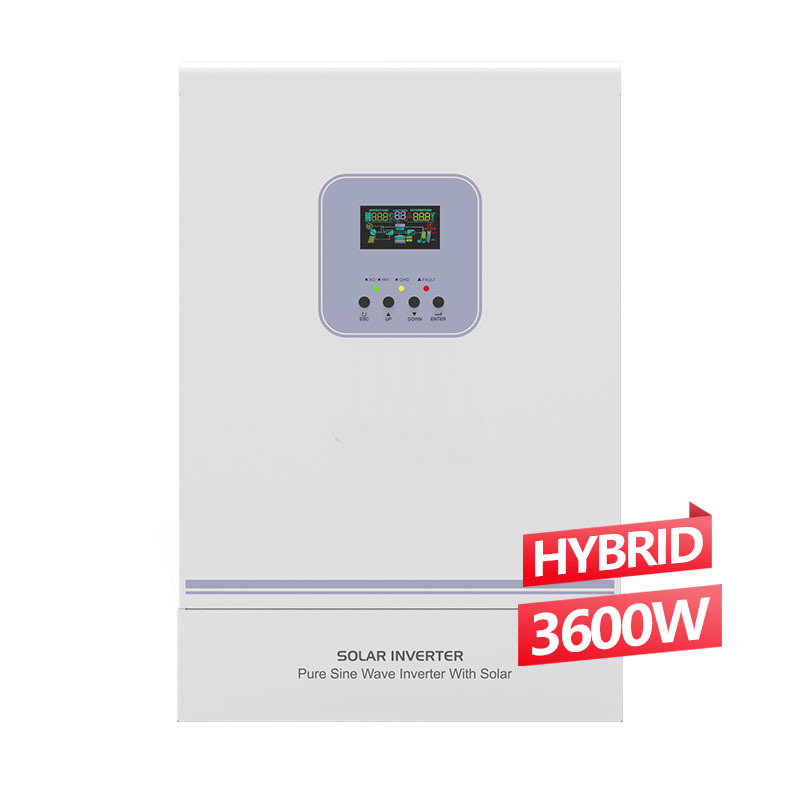

3KW hybrid-inverters Manufacturer
15KW hybrid-inverters manufacturer
5.5KW hybrid-inverters factory
| Model | GA2024.HMH | GA3024.HMH | GA3024.MH | GA3524.MH | GA5545.MH | GA5245.MH |
|---|---|---|---|---|---|---|
| Input Formation | L1N+PE | |||||
| AC Input | 220/230/240VAC | |||||
| Input Voltage Range | 90~280VAC±3V (Normal Mode) 185~264VAC±3V (UPS Mode) |
|||||
| Frequency | 50/60Hz (Adoptive) | |||||
| Rated Power | 2000W | 3000W | 3000W | 3600W | 5500W | 6200W |
| Output Voltage | 208/220/230/240VAC±5% | |||||
| Output Frequency | 50/60Hz±0.1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Transfer Time (Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment |
|||||
| Peak Power | 4000VA | 6000VA | 6000VA | 7200VA | 11000VA | 12400VA |
| Overload Ability | Battery Mode : 2Rp@102%-10% Load Tavg@102%-30% Load 3Rp@130%-150% Load 40Qmrg@1150% Load | |||||
| Peak Efficiency (Battery Mode) | >94% | |||||
| Rated Voltage | 24VDC | 48VDC | ||||
| Constant Charging Voltage | 28.2VDC | 56.4Vdc | ||||
| Float Charging Voltage | 27VDC | 54VDC | ||||
| PV Charging Method | MPPT | |||||
| Max PV Input | 2000W | 3000W | 4200W | 4200W | 5500W | 6200W |
| MPPT Tracking Range | 30~450VDC | 40~500VDC | 90~500VDC | 90~500VDC | 90~500VDC | 90~500VDC |
| MAX PV Input Voltage | 450VDC | 500VDC | 500VDC | 500VDC | 500VDC | 500VDC |
| MAX PV Charge Current | 60A | 100A | 100A | 100A | 100A | 100A |
| MAX AC Charge Current | 60A | 60A | 60A | 80A | 80A | 80A |
| MAX Charge Current | 80A | 100A | 100A | 120A | 100A | 100A |
| LCD | Can display operating mode/local/input/output | |||||
| RS232 | SPM/Preiz12_54mm,Baud Rate 2400 | |||||
| Expansion Six Communication Interface | Lithium Battery BMS Communication Card,WHT 2-5PIN/Preiz12_54mm | |||||
| Parallel Interface | Not Support Parallel | Support Parallel | ||||
| Operating Temperature | 0°C~40°C | |||||
| Storage Temperature | -15°C~60°C | |||||
| Ork Altitude | No more than 1000m, If 1000m: Rate power will lower, MAX 4000m, Refer | |||||
| Operating Environment Humidity | Non Condensing | |||||
| Noise | <50dB | |||||
| L*W*m(mm) | 385*285*116mm | 495*312*125mm | ||||
| Model | GA88a8MH | GA110a8MH |
|---|---|---|
| Nominal Voltage | 220/230/240VAC | |
| Voltage Range | 90~280VAC+3V (Inverter Mode) 170~280VAC+3V (UPS Mode) |
|
| Frequency | 50~60Hz Auto sensing | |
| Rated Output Power | 8800W | 11000W |
| Output Voltage(AC) | 220/230/240VAC+8% | |
| Output Frequency | 50/60Hz±0.1% | |
| Waveform | Pure sine wave | |
| Transfer time(AC to DC) | 10ms for Computer Equipment:20ms for Household Equipment | |
| Peak Power | 16000VA | 22000VA |
| Overload Capacity(Battery Mode) | 2h@105K-150K Load | 1h@105K-200K Load 400ms@-200K Load |
| Grid Voltage Range | 190~253VA | |
| Grid Frequency Range | 49~51sHz/53~61sHz | |
| Output Current | 34.7A | 47.8A |
| Power Factor Range | >0.99 | |
| Peak Efficiency(Battery Mode) | 98% | |
| Nominal Voltage | 48VDC | |
| Constant Charging Voltage | 58.4VDC | |
| Root Charging Voltage | 54VDC | |
| PV Charging Way | MPFT | |
| Max PV Input Power | 2*5500W | |
| MPFT Controller Voltage | 90~500VDC | |
| MAX PV Input Voltage | 500VDC | 500VDC |
| MAX PV Charge Current | 150A | 150A |
| MAX AC Charge Current | 120A | 150A |
| MAX Charge Current | 150A | 150A |
| LCD Display | AC Input Voltage,AC Input Frequency,PV Voltage,PV Current,Output Voltage, Output Frequency,Battery VoltageLoad Current,etc. | |
| RS232 | 5PN/Pitch2.0mm | |
| Expansion Slot Communication Interface | 2x5PN/Pitch2.5.4mm, Lithium battery BMS communication card, WiFi, etc | |
| Parallel Interface | Yes | |
| Operating Temperature | 0~40°C | |
| Humidity | 20X~95X(Mon-condensing) | |
| Storage Temperature | -15~60°C | |
| Attitude | -1000m | |
| Noise(dB) | <50dB | |
Intelligent Bidirectional Charging and Discharging System
Inverters with bi-directional charging and discharging functions automatically regulate the flow of energy between the battery and the grid according to demand. You can store power when the price of electricity is low and use the stored power when the price of electricity is high, realizing 24-hour uninterrupted power supply and saving energy costs.
IIntelligent Monitoring and Remote Management
Equipped with a real-time intelligent monitoring system, you can check the system operation status, including battery level, power generation, power output, etc., at any time via your cell phone or computer. Our system supports 24/7 remote monitoring and alarm functions, automatically sending notifications to the user when abnormalities are detected, ensuring that the equipment is always in optimal working condition.
Multi-energy input compatibility
Our hybrid inverter supports solar, wind and grid energy inputs. It automatically switches to the optimal energy source, prioritizing solar power during the day and switching to storage batteries or grid power at night, ensuring a stable power supply day and night.
Ultra High Conversion Efficiency (98%)
Benefit from your committed Hybrid Inverters Manufacturers & Suppliers
Accept small orders, test orders
No matter how big your order is, we will take it seriously. Ensure that every transaction is completed perfectly and live up to your expectations of us.
Strong ODM and OEM capabilities
We have a strong design and R&D team with rich experience in OEM and ODM, applying for more than 20 innovative designs every year, you give us the order, we give you the peace of mind.
Strong Supply Chain
We have a strong supply chain, even if you do not need our brand, we can provide you with a variety of brands of products at affordable prices.
Custom Hybrid Inverters For Your Brand
We provide custom solutions to all our customers and offer free consulting or samples of Hybrid Inverters that you can take advantage of.
2.Custom Your Bulk Off-Grid Inverter
Ideas into products
Our team can turn your idea into a product by designing an inverter based on your ideas. You can also provide samples or sketches, while our team optimizes the product according to your needs and provides the best product solution.
Logos
You can use our logo or your own, we can also help you to design your logo and build your own brand.
Customization Features
We have a strong design and manufacturing team, you can add all kinds of desired features on your inverter.
