Your Trusted Off-Grid Inverter Manufacturers & Suppliers in China
IWIS’s range of off-grid inverters feature high conversion efficiency so you never have to worry about energy conversion again, PI65 water and dust proofing, indoor and outdoor with no problems, and lightning proof design. High efficiency, high quality to provide you with stable and safe power. Stable operation under harsh conditions.
Whether it’s for residential, commercial or solar applications, IWIS’s off-grid inverters can be trusted to power you anywhere, anytime.
We utilize our expertise and cutting-edge technology to provide high-performance off-grid solutions for efficient and stable power systems for your residential, commercial …
Off-Grid Inverter Manufacturers & Suppliers in China

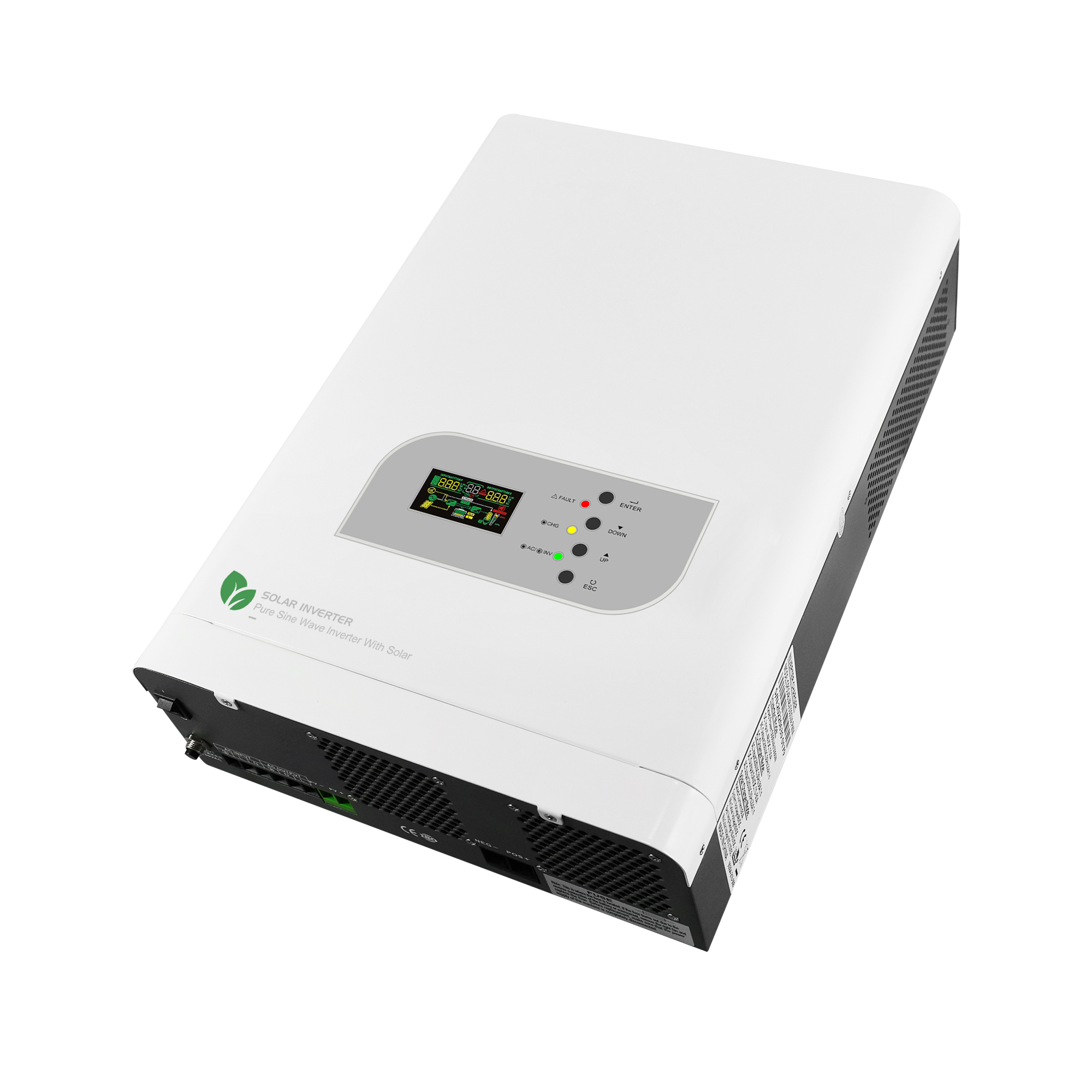

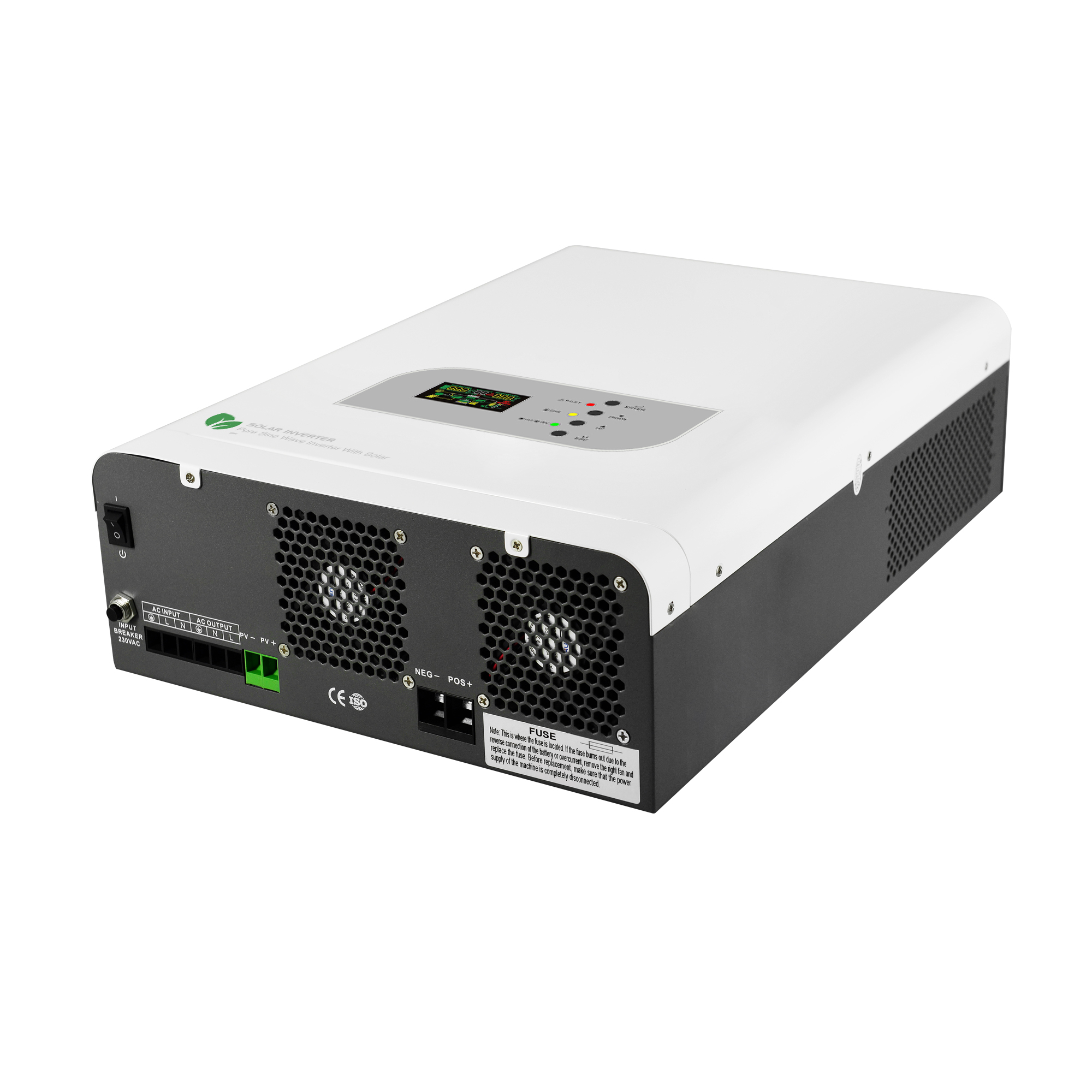

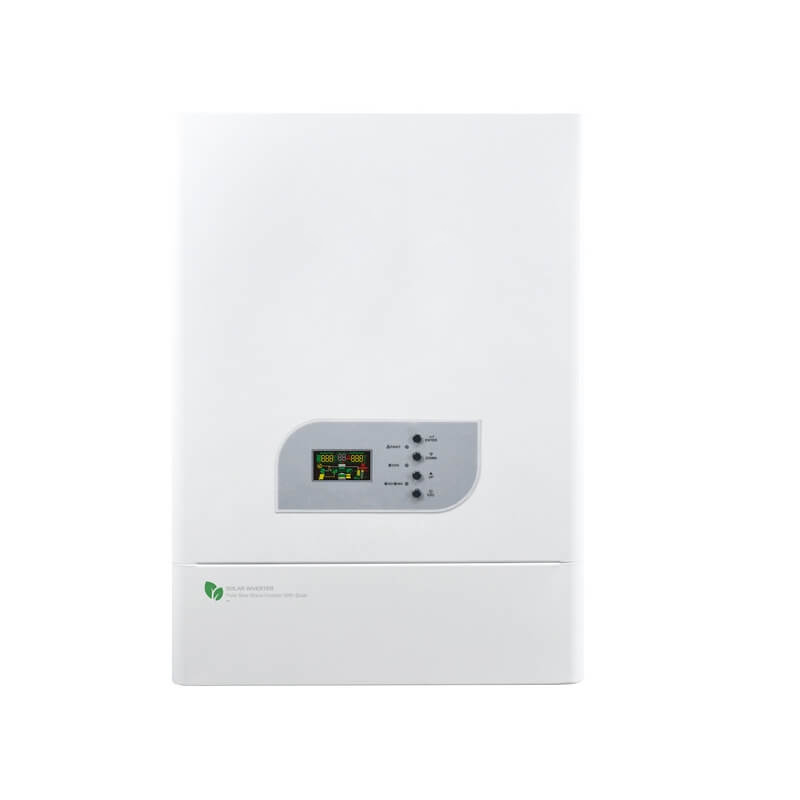

Feature:
Pure sine wave output inverter
The product is compact and beautiful, with 6.25 inch
LCD display and touch buttons
The utility input voltage range can be selected according to the requirements of the load (home appliance/PC)
Battery charging current can be set via
LCD according to load requirements
Smart battery charging design makes the battery more fully utilized utility/battery priority input mode can be set via
LCD display compatible with mains and generator input utility and PV complementary power supply loads to ensure maximum utilization.
Auto restart function when PV/utility recovers
Overload, high temperature, inverter output short circuit protection
Cold start function special mode for lithium batteries to prolong the battery life
Support different communication methods:RS232/ RS485/WIFI/Bluetooth
WIFI monitoring and setting(optional)
Dust filter(optional)
1KW
1.5KW
2KW
3KW
5KW
6.3KW
8KW
10KW
12.5KW

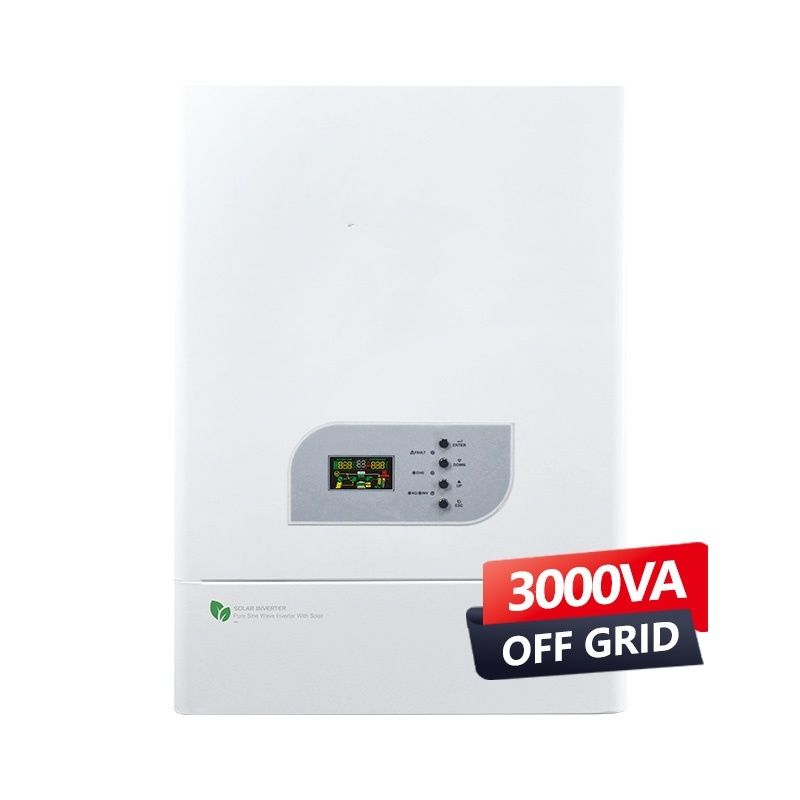

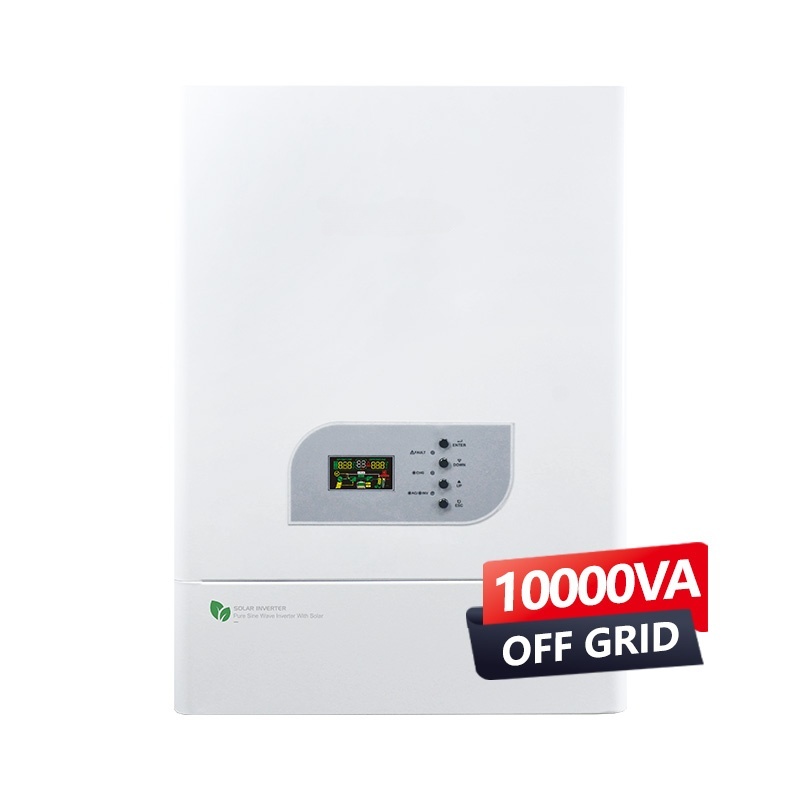

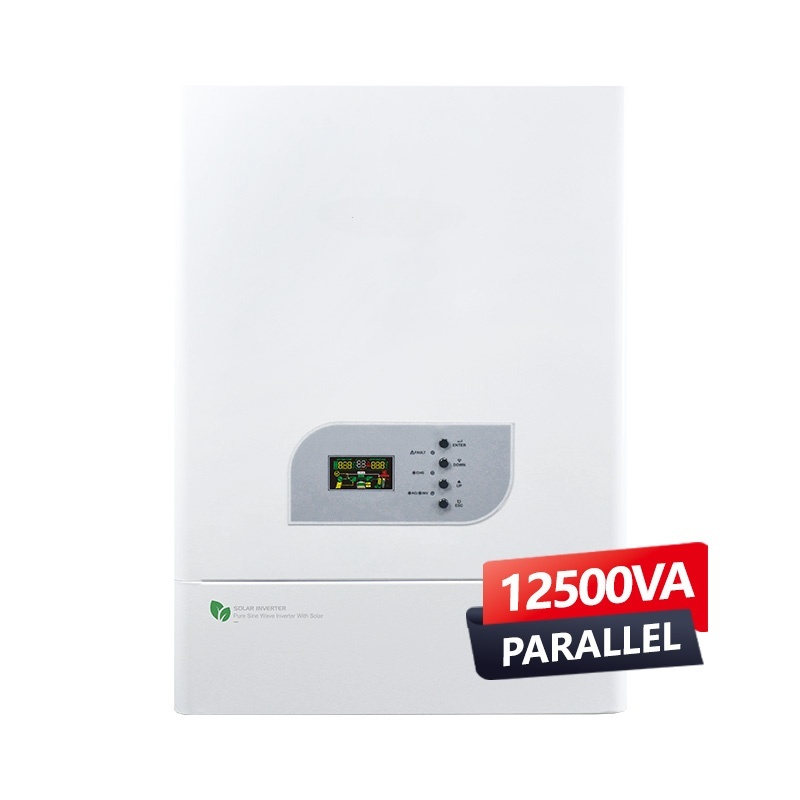

| Model | VS302448M6 | VS402448M6 | VS502448M6 | VS65248M6 | VS8048M6 | VS10048M6 | VS12548M6 |
|---|---|---|---|---|---|---|---|
| AC Input Voltage | 220VAC±2% (standard) | ||||||
| Input voltage range | 154~264VAC±3V (Normal Mode) / 175~264VAC±3V (AVR Type) / 154~264VAC±3V (UPS model) | ||||||
| Input frequency | 50/60Hz±0.3% | ||||||
| Output power | 3000VA / 2400W | 4000VA / 3200W | 5000VA / 4000W | 6500VA / 5200W | 8000VA / 6400W | 10000VA / 8000W | 12500VA / 10000W |
| AC model output voltage | The output voltage under the mains is the same as the input voltage (AVR function 220V±10%) | ||||||
| Battery model output frequency | The output frequency under the mains is the same as the input frequency | ||||||
| Battery model output voltage | 220VAC±10% | ||||||
| Battery model output frequency | 50Hz or 60Hz±0.1% | ||||||
| Battery model output wave | Pure sine wave | ||||||

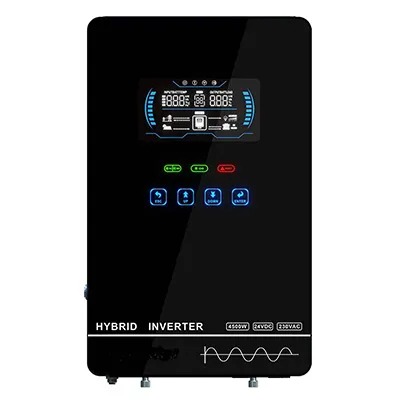

| MODEL | MPS-IM 4.5KW | MPS-IM 6.5KW | MPS-IM 7.2KW |
|---|---|---|---|
| Rated Power | 4500W | 6500W | 7200W |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range (PC) | 170-280VAC | ||
| Selectable Voltage Range (Home Appliances) | 90-280VAC | ||
| Frequency Range | 50Hz/60Hz | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt Mode) | 230VAC+5% | ||
| Surge power | 2*4500W | 2*6500W | 2*7200W |
| Efficiency(Peak) PV to INV | 97% | ||
| Efficiency(Peak) BAT to INV | 94% | ||
| Transfer Time (PC) | 10ms | ||
| Transfer Time (Home Appliances) | 20ms | ||
| Wave form | Pure Sine Wave | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 24VDC | 48VDC | 48VDC |
| Bulk Charging Voltage (Flooded Battery) | 29.2VDC | 58.4VDC | 58.4VDC |
| Bulk Charging Voltage (AGM/GEL Battery) | 28.2VDC | 56.4VDC | 56.4VDC |
| Floating Charge Voltage | 27VDC | 54VDC | 54VDC |
| Overcharge Protection | 32VDC | 63VDC | 63VDC |
| Maximum charge current | 150A | 130A | 150A |
| SOLAR CHARGER | |||
| Max PV Array Power | 5500W | 6500W | 8000W |
| MPPT Range @ Operating Voltage | 120-450VDC | ||
| Max PV Array Open Circuit Voltage | 450VDC | ||
| Max Charging Current | 150A | 130A | 150A |
| Max Efficiency | 99% | ||
| PHYSICAL | |||
| Dimension (D*W*H mm) | 468*318*159mm | ||
| Net Weight (kgs) | 7.5KG | ||
| Communication Interface | RS485/RS232 (Standard), LCD remote/WIFI (Optional) | ||
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature | 0°C to 55°C | ||
| Storage Temperature | -15°C to 60°C | ||
Why do you get Off Grid Inverters from Solarinvertermanufacturer.com
Customized solutions to meet different needs
We offer professional customization services to provide the most suitable Off-Grid Inverter solutions according to the specific needs of our customers (e.g. solar system capacity, battery type, environmental conditions, etc.). Whether it’s for home users, commercial projects, or large-scale off-grid power systems, we can provide precisely matched products to ensure maximum system efficiency and stability.
Superior Technology Development and High Performance
Our Off-Grid Inverter products utilize the latest technology with higher energy efficiency, longer service life and stronger anti-interference capability. Through our own research and development, we are able to provide more efficient inverters in the industry, improving the overall efficiency of your solar system and ensuring that you get the most out of your investment.
Cost-effective and globally certified
We offer Off-Grid Inverter products with excellent price/performance ratios and have passed many international certifications (e.g. CE, UL, ISO, etc.) to ensure that our products meet international standards. This means that no matter what country you are in, you can be sure of the quality and safety of your products and compliance with local regulations.
Fast delivery and comprehensive after-sales service
Benefit from your committed off-grid inverter Manufacturers & Suppliers in China
Accept small orders, test orders
No matter how big your order is, we will take it seriously. Ensure that every transaction is completed perfectly and live up to your expectations of us.
Strong ODM and OEM capabilities
We have a strong design and R&D team with rich experience in OEM and ODM, applying for more than 20 innovative designs every year, you give us the order, we give you the peace of mind.
Strong Supply Chain
We have a strong supply chain, even if you do not need our brand, we can provide you with a variety of brands of products at affordable prices.
Custom Off-Grid Inverter For Your Brand
We provide custom solutions to all our customers and offer free consulting or samples of Off-Grid Inverter that you can take advantage of.
2.Custom Your Bulk Off-Grid Inverter
Ideas into products
Our team can turn your idea into a product by designing an inverter based on your ideas. You can also provide samples or sketches, while our team optimizes the product according to your needs and provides the best product solution.
Logos
You can use our logo or your own, we can also help you to design your logo and build your own brand.
Customization Features
We have a strong design and manufacturing team, you can add all kinds of desired features on your inverter.
What Other Inverter or Power Products You Want
Energy Storage Systems

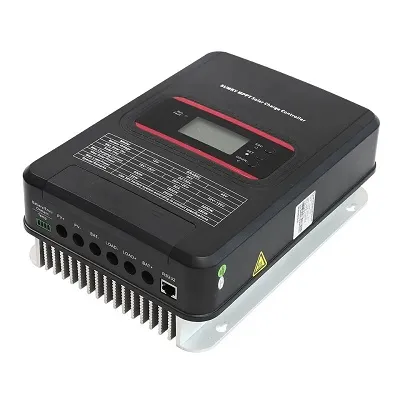

Solar Charge Controller
Energy Storage Inverter
You don’t need to have any experience in importing off grid inverter from China, because a professional off grid inverter supplier will guide you step by step until you receive it in your country, We have exported off grid inverters to the USA, Canada, New Zealand, Australia, Singapore, UK, and EU. But how to verify good quality when you buy off-grid inverter wholesale from China, Contact us for more details.
Custom Off-Grid Inverter For Your Brand
We provide custom solutions to all our customers and offer free consulting or samples of Off-Grid Inverter that you can take advantage of.
